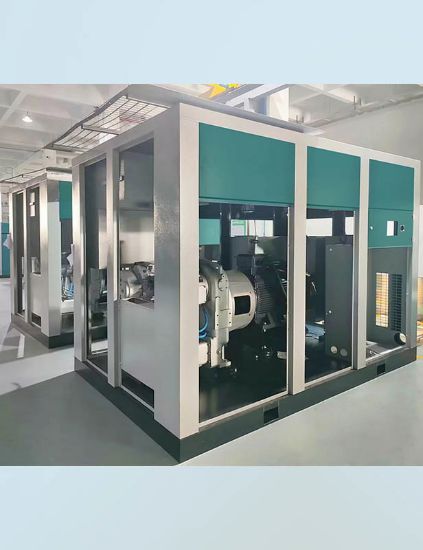

EGW45 - EGW280W Oil-free Screw Air Compressor

Hãy là người đầu tiên đánh giá sản phẩm này.

Capacity FAD : 171 - 1528 cfm, 4.85 - 43.23 m3/min; Working Pressure : 7 - 10 bar(e), 102 - 145 psig; Installed Motor Power : 45 - 280 kW, 60 - 375hp.

Nhà sản xuất: ERG

Liên hệ

EGW Series Oil-free Air Compressor Advantages:

Sustainable safe & energy-saving designs

ISO 8573-1 CLASS 0 certified 100% oil-free air
The rotors and housing are covered with a hard coating ensures zero risk of contamination
Premium system allows the compressor to use 30% less power

Improving reliability & performance

Heavy-duty design of prefilter, air inlet and filters keeps continuous clean air
Unique air end is engineered to achieve ideal air capacity and pressure
All of components are selected to ensure maximum durability for longer working life

Easy operation & worry-free maintenance

Compact design for easy transportation and installation, plug and play
Fewer consumables, lowest rate of failure to save the labor time
User friendly control and monitoring system is easy and safe to operate

Optimal cost reducing solution

Superior R & D and supply chain for the highest cost-effective acquisition cost
Leading cloud operation system by IoT technology to reduce failure time and lower operation cost
Less spares and downtime ensures the lowest maintenance cost

EGW Series Oil-free Air Compressor Main Components:

Screw Air End

The toothed belt sealing line has higher efficiency, lower noise and less vibration
The new heat dissipation method ensures a lower exhaust temperature
Rotor coating, durable guarantee for up to 5 years
The sealing structure design greatly reduces the chance of oil leakage from pores
The selected negative pressure system can further prolong the service life

High Efficiency Drive Motor

Lower operating costs. It can basically realize maintenance-free and reduce maintenance costs
Smaller, Lower volume and noise
More reliable safe and stable operation
Better accuracy

Controller

Installation, one-piece installation, time-saving and convenient
Safety protection, motor, exhaust over-temperature, air compressor anti-reversal, anti-phase failure protection, ultra-low air supply pressure and sensor failure protection
Early warning, air filter, oil filter, oil content early warning, lubricating oil, grease use time early warning, exhaust high temperature early warning

Air Filter

Atmospheric dew point is -23℃
Oil content can be accurate to 0.01ppm
Dusty particle diameter ＜0.01μm

Stainless Steel Pipe

It can stabilize the air in the pipeline for a long time without leakage
Stainless steel pipes with high corrosion resistance will not corrode and rust when transporting air or filtering air
It will not cause loosening and cracking of pipes and fittings, and avoid safety accidents from a safety point of view
